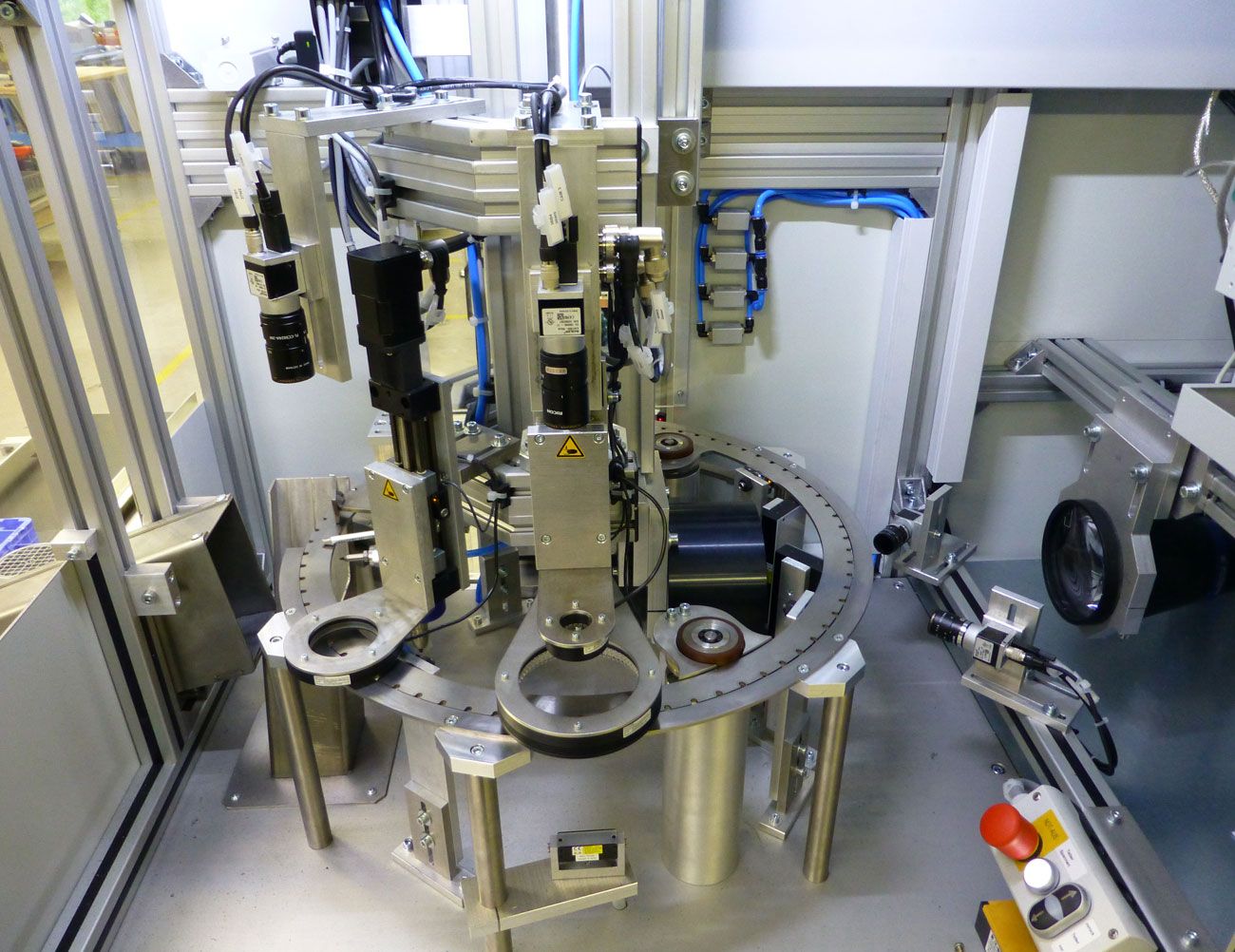

OPTISORT ST 580 long
Inspection system for long screws- Part range M6 – M16
- Shank length: 80 - 150 mm
- HSS slot dial, thickness 4 mm
- Pneumatic clamping system for slot dial changing
- Special feeding system for long parts
![[+]](/images/otst-580-l-1.jpg)
![[+]](/images/otst-580-l-2.jpg)
![[+]](/images/otst-580-l-3.jpg)
![[+]](/images/otst-580-l-4.jpg)
Options
![[+]](/images/360-3-otst580.jpg)
![[+]](/images/pruefung-1.jpg)
![[+]](/images/pruefung-2.jpg)
360° Inspection
Inspection of the perimeter surface of the part during running continuously with up to 400 parts per minute:- Thread defects
- Cracks and scratches
- Coating errors
- Contour inspection
![[+]](/images/sensor-hardness-control.jpg)
![[+]](/images/eddy2.png)
![[+]](/images/eddy3.png)
![[+]](/images/eddy4.png)
Hardness control using Eddy Current Testing
Using a sensor, parts can be checked for hardness (yes/no) while running continuously.
![[+]](/images/inspection-for-bended-screws-1.jpg)
![[+]](/images/inspection-for-bended-screws-2.jpg)
